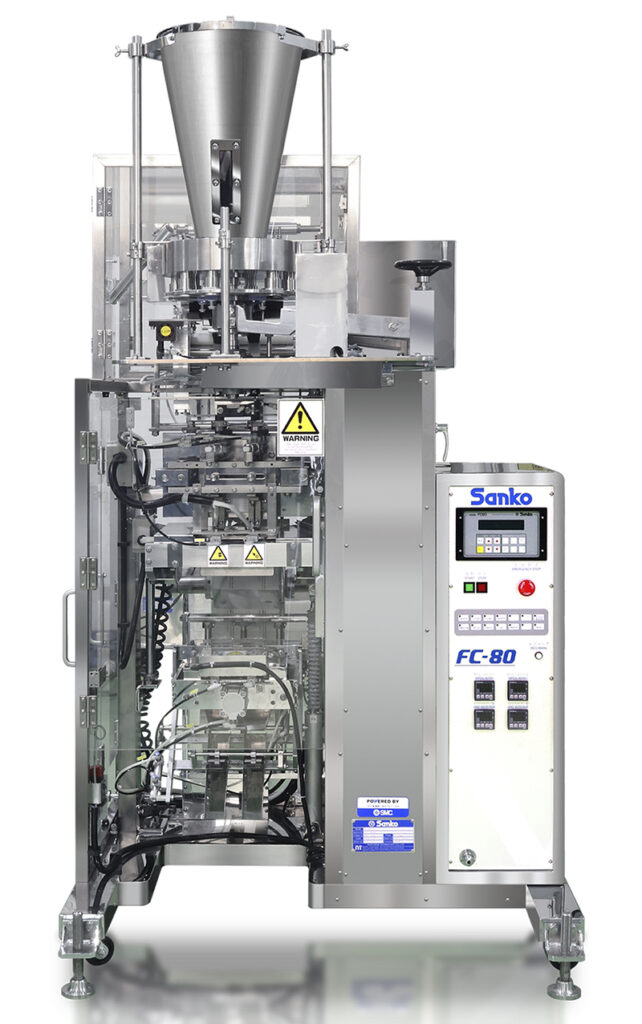

Standard machine most suitable for diversified small-lot production.
Standard configuration
– Heater temperature monitor – Film end stop device – Abnormal air pressure stop device – Total counter – Preset counter – Pattern matching device – Film joint detector – Detective removal device – Edge slit removing device – Horizontal sealing position changing device of dial type (used for matching the pattern)
Specifications
Bag length 50 to 190 mm.
Film width 2 Line bag width 10 to 45 mm./218 mm.
Packaging speed (#1) 10 to 70 bags / min per line
Packing volume (#2) 1 to 50 cc.
Diameter of packaging film O 350 – 450 mm.
Dimensions W 1.200 × D 1.360 × H 2.100 mm.
Weight 500 Kg.
Power supply 3-phase, 200 V. 50/60 HZ. (4 kW at peak, 2kW on the average.)
